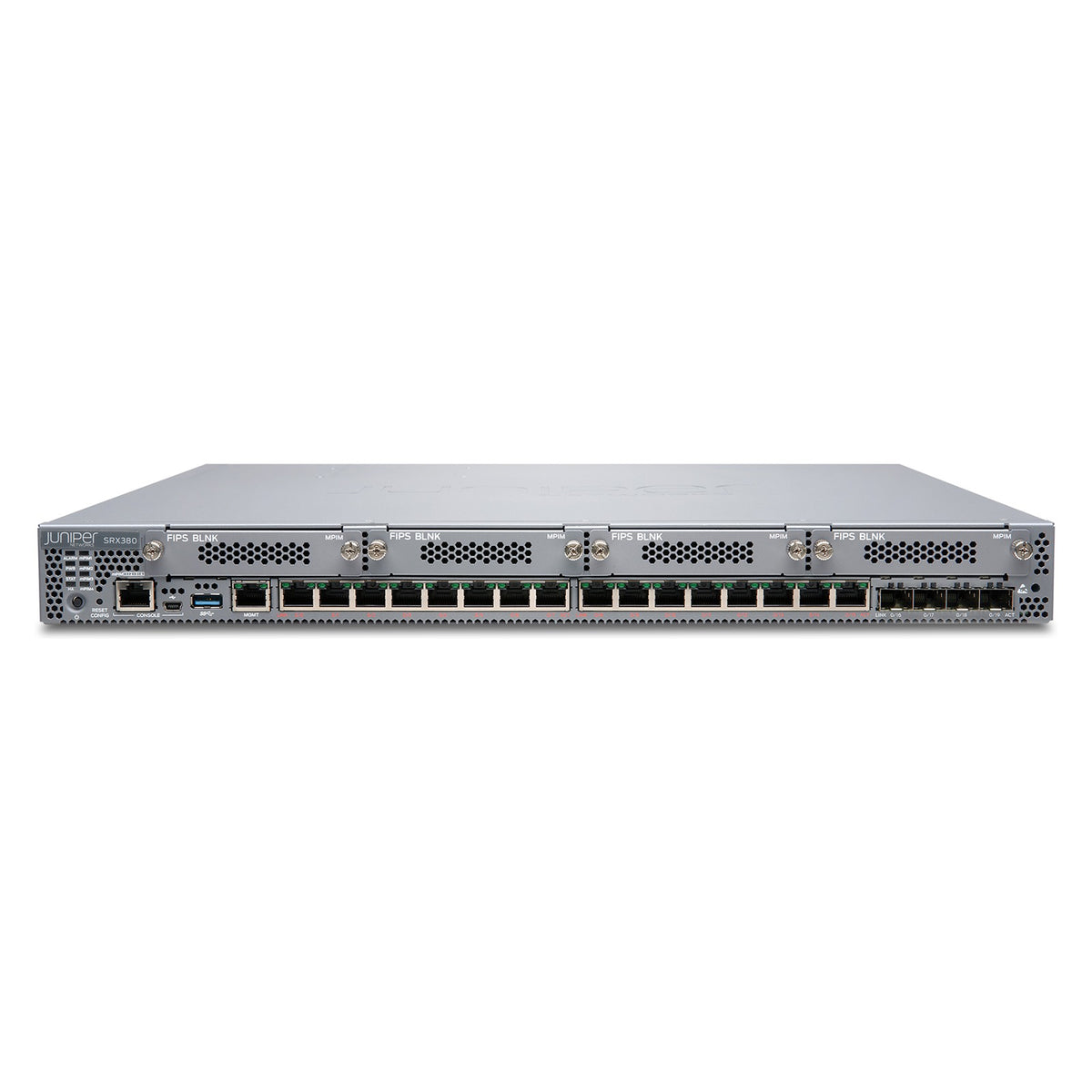

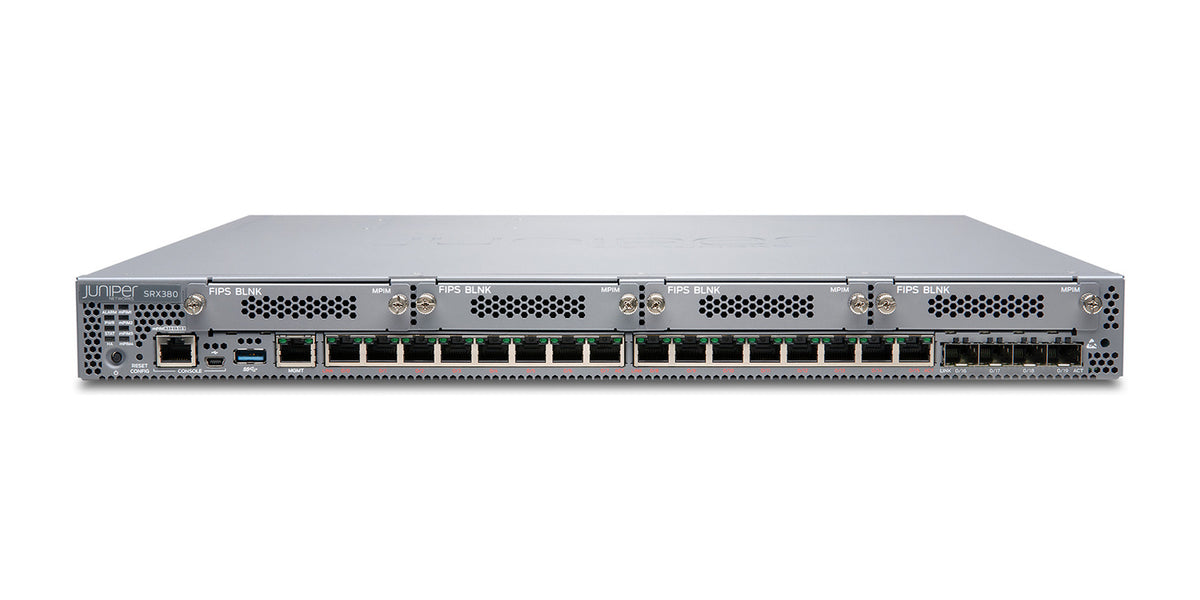

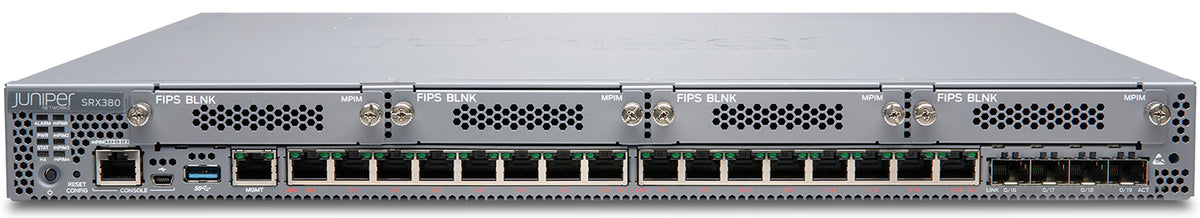

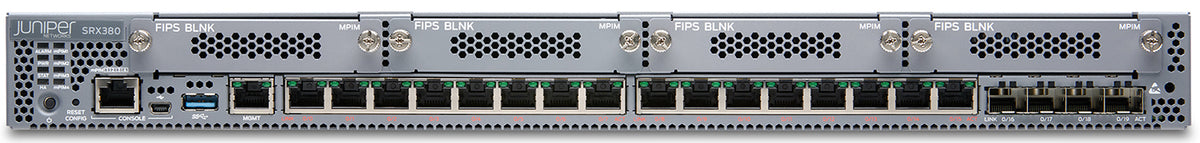

Juniper SRX380 Firewall
The Juniper SRX380 is a high-performance next-generation firewall that is particularly suitable for distributed business branches with higher requirements for WAN, security and site connectivity. It combines security, routing and switching functions in one central platform and is a strong choice for demanding branch and SD-WAN scenarios.
DEVACON supports you from consulting through to project-specific selection.
Key facts from the Juniper datasheet
- Form factor: 1 U
- 16 × 1GbE RJ45 with PoE+, 4 × 10GbE SFP+, 1 management port, 4 Mini-PIM slots
- PoE budget 480 W
- Firewall 20 Gbps (1518 B), 6.5 Gbps (IMIX)
- IPsec VPN 4.4 Gbps (1400 B), 1.4 Gbps (IMIX), up to 2,048 tunnels
- NGFW 2.5 Gbps
- Up to 380,000 concurrent sessions
- Redundant hot-swappable AC power supplies (1+1)
- 100 GB SSD
Areas of use
- Distributed enterprise offices
- Secure SD-WAN gateway
Models and key specifications
| Model | Ports | Firewall (1518 B / IMIX) | IPsec VPN (1400 B / IMIX) | NGFW | Form factor |
|---|---|---|---|---|---|
| SRX380 | 16 × 1GbE RJ45 PoE+, 4 × 10GbE SFP+, 4 × Mini-PIM | 20 / 6.5 Gbps | 4.4 / 1.4 Gbps | 2.5 Gbps | 1 U |
Throughput per datasheet with UDP packets per RFC 2544. NGFW measured with firewall, application security and IPS using 64 KB transactions. Order number per datasheet: SRX380-P-SYS-JB-AC.
Source of information: hpe.com (PDF, Datenblatt SRX300-Linie, Stand November 2025) ·juniper.net (PDF, japanische Fassung) ·Juniper EOL-Übersicht SRX
