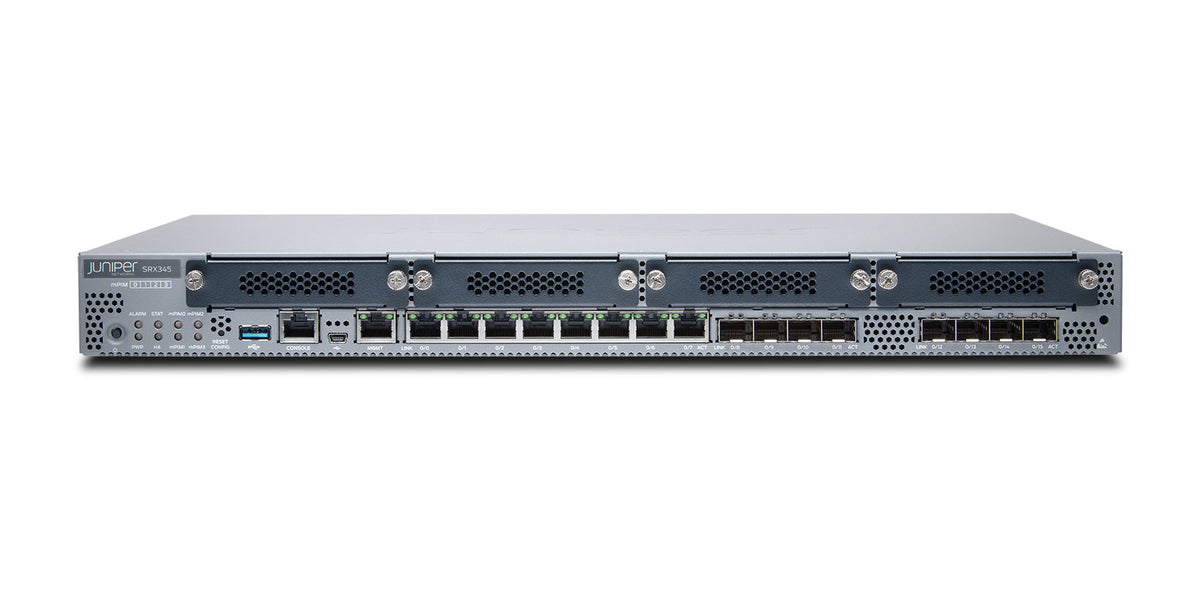

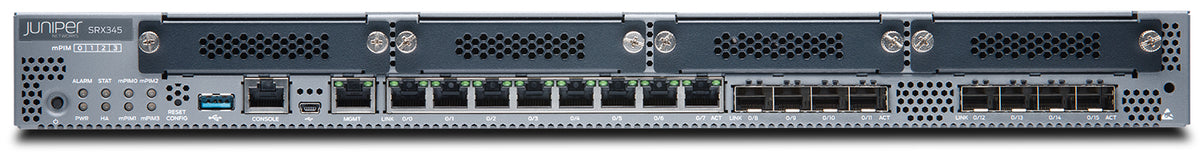

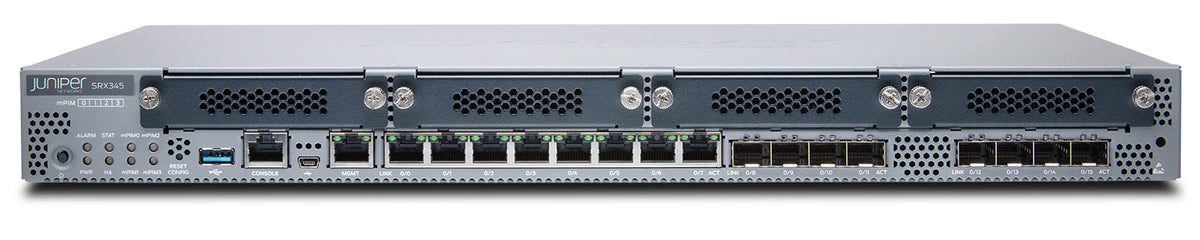

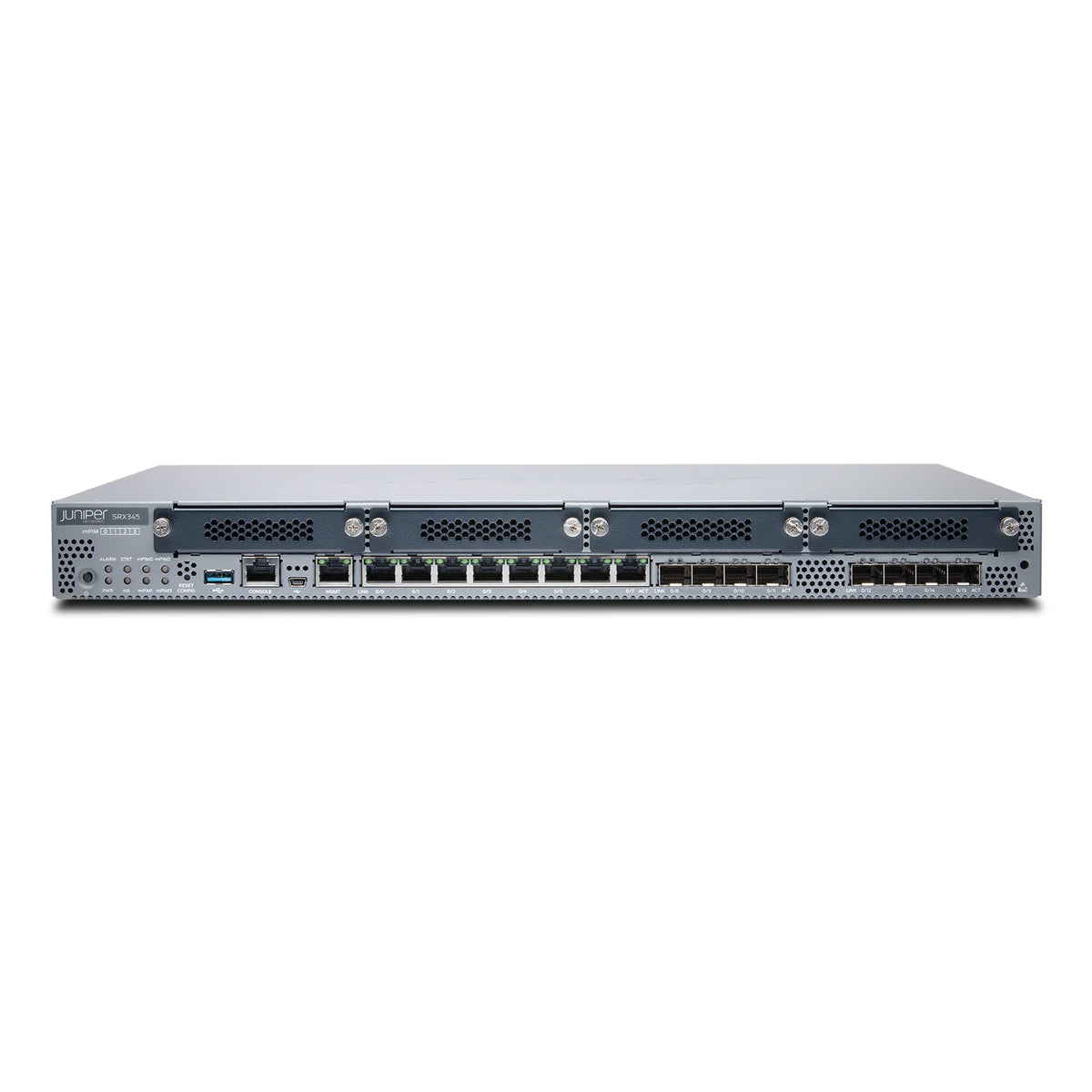

Juniper SRX345 Firewall
The Juniper SRX345 Firewall is designed for medium-sized and larger branches. It offers a strong combination of network security, routing, switching and WAN connectivity and is suitable for businesses that need reliable performance in distributed infrastructures.
DEVACON supports you with selection, quotation and technical integration.
Key facts from the Juniper datasheet
- Form factor: 1 U
- 8 × 1GbE RJ45, 8 × 1GbE SFP, 1 management port, 4 Mini-PIM slots
- Firewall 5 Gbps (1518 B), 1.5 Gbps (IMIX)
- IPsec VPN 977 Mbps (1400 B), 325 Mbps (IMIX), up to 2,048 tunnels
- NGFW 430 Mbps
- Up to 375,000 concurrent sessions
- Internal power supply, variants with dual AC or DC power supply
- MACsec on all 16 ports
Areas of use
- Midsize to large distributed branch offices
Models and key specifications
| Model | Ports | Firewall (1518 B / IMIX) | IPsec VPN (1400 B / IMIX) | NGFW | Form factor |
|---|---|---|---|---|---|
| SRX345 | 8 × 1GbE RJ45, 8 × 1GbE SFP, 4 × Mini-PIM | 5 Gbps / 1.5 Gbps | 977 / 325 Mbps | 430 Mbps | 1 U |
Throughput per datasheet with UDP packets per RFC 2544. NGFW measured with firewall, application security and IPS using 64 KB transactions. Order numbers per datasheet: SRX345-SYS-JB, SRX345-SYS-JB-2AC, SRX345-SYS-JB-DC. SRX345-DC: operating temperature −30 to 55 °C.
Source of information: hpe.com (PDF, Datenblatt SRX300-Linie, Stand November 2025) ·juniper.net (PDF, japanische Fassung) ·Juniper EOL-Übersicht SRX
