Juniper SRX2300 Firewall
According to Juniper, the SRX2300 is a next-generation firewall designed to protect the enterprise campus edge and data center edge. It also supports roaming, SD-WAN large branch and SD-WAN secure hub use cases.

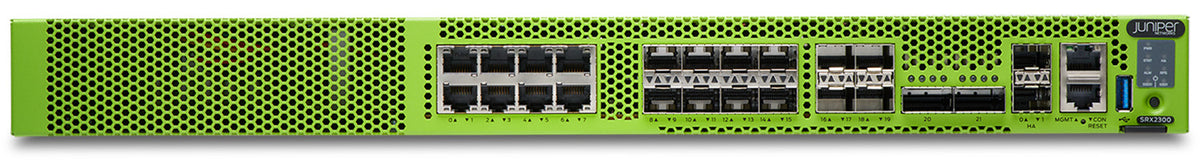

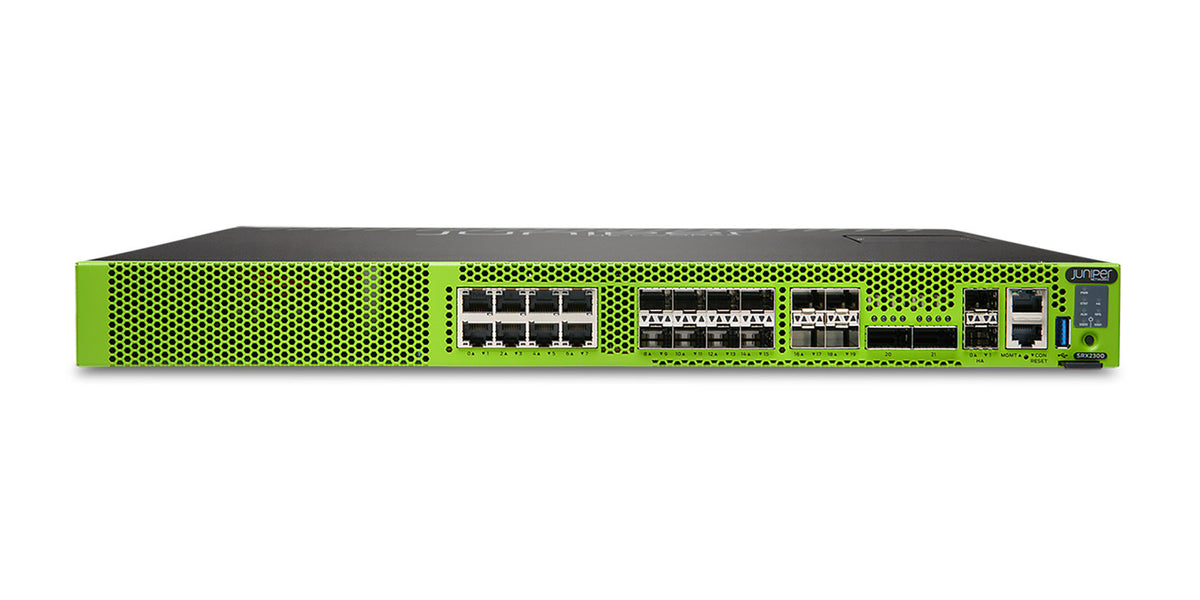

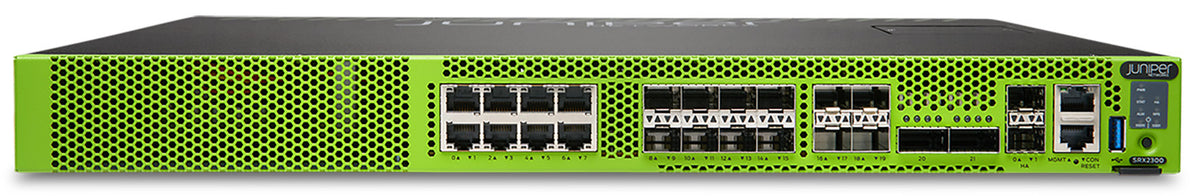

The 1 U device provides eight multigigabit ports up to 10GbE (RJ45), eight SFP+ ports, four SFP28 ports up to 25GbE and two QSFP28 ports for 40 or 100GbE. According to the datasheet, the SRX2300 delivers up to 39 Gbps firewall throughput and up to 36 Gbps IPsec VPN. Redundant power supplies, MACsec, EVPN-VXLAN and management via Juniper Security Director Cloud or Juniper Mist WAN Assurance are included.
We are happy to advise you on project and volume enquiries. On request, DEVACON handles planning, configuration and commissioning.
Key facts from the Juniper datasheet
- Form factor: 1 U, 43.89 × 4.42 × 46.23 cm
- 8 × 1/2.5/5/10GbE RJ45, 8 × 1/10GbE SFP+, 4 × 1/10/25GbE SFP28, 2 × 40/100GbE QSFP28
- 2 dedicated HA ports (1GbE SFP), 1 management port (RJ45)
- Firewall throughput 39 Gbps (1518 B), 28 Gbps (IMIX)
- IPsec VPN 36 Gbps (1400 B), 18 Gbps (IMIX), up to 4,000 tunnels
- NGFW throughput 35 Gbps
- Up to 5 million concurrent sessions
- Redundant power supplies (1+1): 2 × 450 W AC or 2 × 650 W DC
- SSD: 2 × 120 GB
- MACsec, EVPN-VXLAN, management via Security Director Cloud or Mist WAN Assurance
Areas of use
- Enterprise campus edge
- Data center edge
- SD-WAN large branch and secure hub
Models and key specifications
| Model | Ports | Firewall (1518 B / IMIX) | IPsec VPN (1400 B / IMIX) | Form factor |
|---|---|---|---|---|
| SRX2300 | 8 × 10GbE RJ45, 8 × SFP+, 4 × SFP28, 2 × QSFP28 | 39 / 28 Gbps | 36 / 18 Gbps | 1 U |
Throughput figures per datasheet measured with UDP packets per RFC 2544. NGFW throughput with firewall, application security and IPS enabled (TPS method: average HTTP sessions). AC or DC power supplies.
Source of information: juniper.net (PDF) ·Juniper EOL-Übersicht SRX
