Juniper QFX5130 Switch
According to Juniper, the QFX5130 series is designed for leaf, border leaf and spine roles in data center IP and EVPN-VXLAN fabrics. The QFX5130-32CD can also be deployed in campus core, distribution and access layers.
The four 1 U models offer 400GbE (QSFP-DD) and 100GbE (SFP56-DD) with up to 25.6 Tbps bidirectional. 1600 W power supplies and fans are redundant and hot-swappable. The switches run Junos OS Evolved and support RoCEv2 for IP storage and 400G-ZR optics for data center interconnect. The QFX5130-48CM model provides MACsec encryption.
We are happy to advise you on project and volume enquiries. On request, DEVACON handles planning, configuration and commissioning.
Key facts from the Juniper datasheet
- Form factor: fixed chassis, 1 U
- Up to 25.6 Tbps bidirectional, 5.3 billion packets per second (QFX5130-32CD)
- Redundant (1+1) hot-swappable 1600 W AC or DC power supplies
- 6 fan trays (5+1), selectable airflow (AFO or AFI)
- EVPN-VXLAN, RoCEv2 with PFC and ECN, PTP boundary clock (32CD)
- Support for 400G-ZR and 400G-ZR-M optics
- Junos OS Evolved, Broadcom Trident4
Areas of use
- Leaf, border leaf and spine in data center fabrics
- Top-of-rack with 100GbE server access
- IP storage with RoCEv2
- Campus core and distribution (QFX5130-32CD)
Models and key specifications
| Model | Ports | Throughput | Packet buffer |
|---|---|---|---|

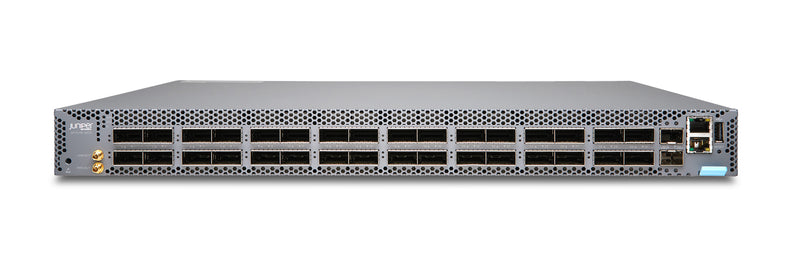

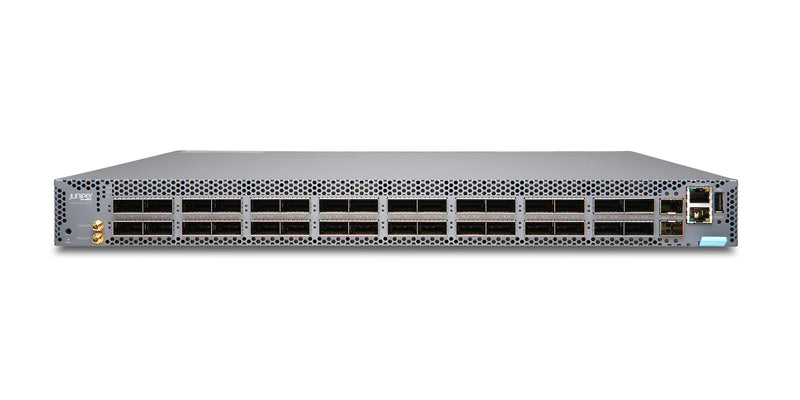

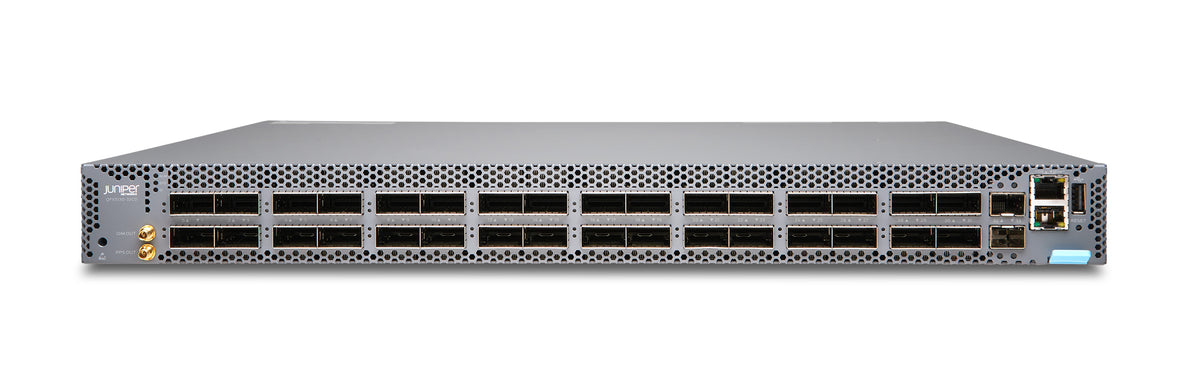

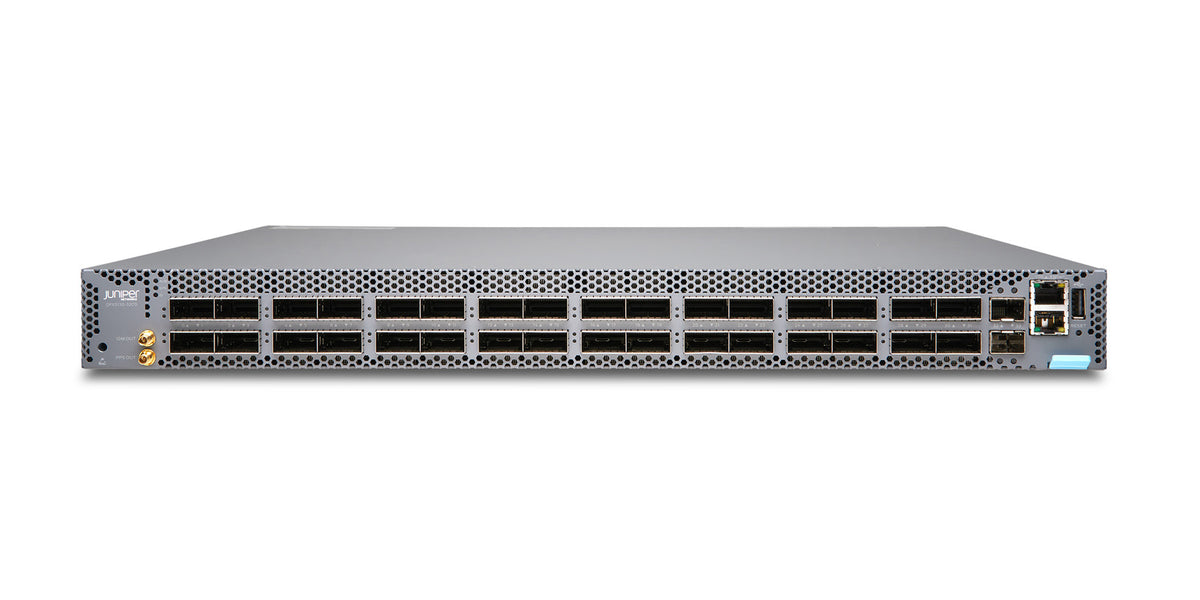

| QFX5130-32CD | 32 × 400GbE QSFP-DD + 2 × 10GbE SFP+ | 25.6 Tbps | 132 MB |
| QFX5130E-32CD | 32 × 400GbE QSFP-DD + 2 × 10GbE SFP+ | 25.6 Tbps | 132 MB |

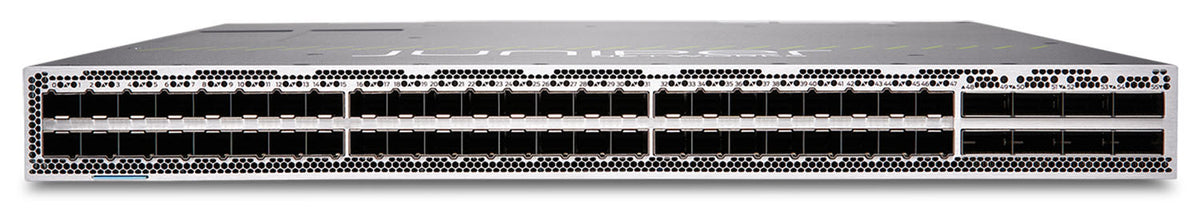

| QFX5130-48C | 48 × 100GbE SFP56-DD + 8 × 400GbE QSFP-DD | 16 Tbps | 82 MB |
| QFX5130-48CM | 48 × 100GbE SFP56-DD + 8 × 400GbE QSFP-DD, MACsec | 16 Tbps | 82 MB |
Throughput bidirectional. QFX5130-48CM: MACsec on 32 × 100GbE and 4 × 400GbE, up to 9.6 Tbps encrypted. With breakout cables up to 128 × 100/50/25/10GbE (32CD) or 72 × 100/50/25/10GbE (48C/48CM).
Source of information: hpe.com Datenblatt (PDF) ·juniper.net Datenblatt (PDF)
