Juniper QFX5120 Switch
According to Juniper, the QFX5120 series is designed as top-of-rack and leaf switches in the data center and as distribution switches in campus networks. It offers low-latency Layer 2/3 features and EVPN-VXLAN with Layer 3 gateway for virtualized and bare-metal servers.
The four 1 U models cover 25GbE (SFP28), 10GbE copper (RJ45) and 100GbE (QSFP28). Performance reaches up to 6.4 Tbps bidirectional depending on the model, with latency from 800 ns. Power supplies and fans are redundant and hot-swappable, and airflow direction is selectable. The QFX5120-48YM model provides MACsec AES256 on all ports. All models support Virtual Chassis.
We are happy to advise you on project and volume enquiries. On request, DEVACON handles planning, configuration and commissioning.
Key facts from the Juniper datasheet
- Form factor: fixed chassis, 1 U
- Up to 6.4 Tbps bidirectional (QFX5120-32C), latency from 800 ns
- Redundant hot-swappable 650 W power supplies (AC or DC, 1+1)
- Redundant fan modules, front-to-back or back-to-front airflow
- EVPN-VXLAN with Layer 2 and Layer 3 gateway, MC-LAG, EVPN multihoming
- Virtual Chassis on all models
- MACsec AES256 on all ports (QFX5120-48YM)
- Broadcom Trident3
Areas of use
- Data center top-of-rack and leaf
- Spine in smaller fabrics (QFX5120-32C)
- Campus distribution and collapsed core
Models and key specifications
| Model | Access ports | Uplinks | Switching capacity |
|---|---|---|---|

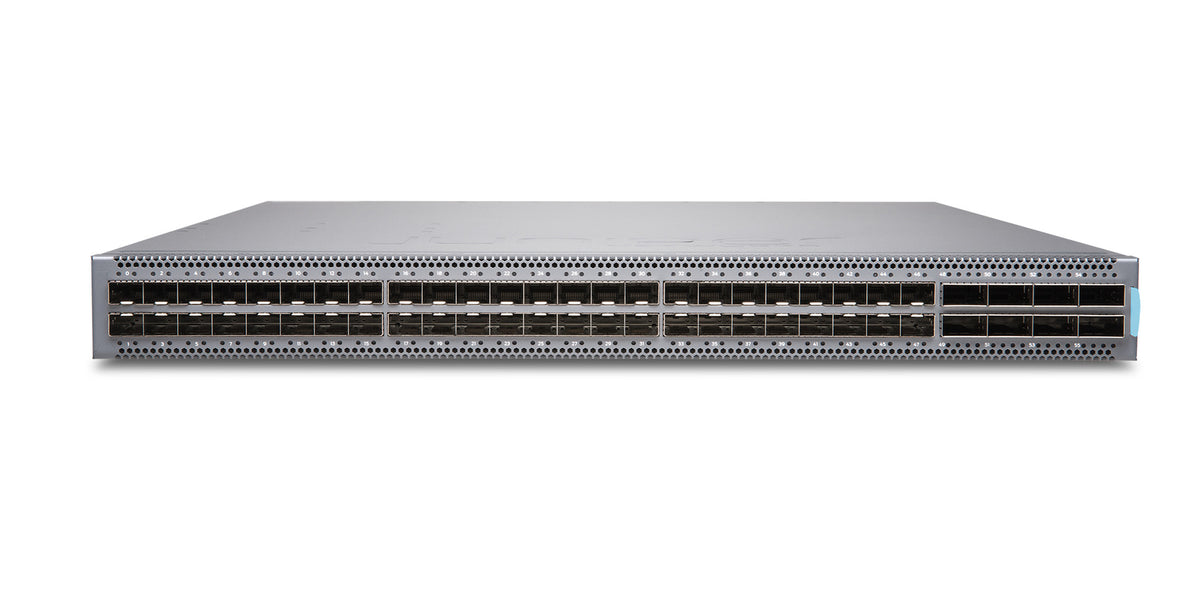

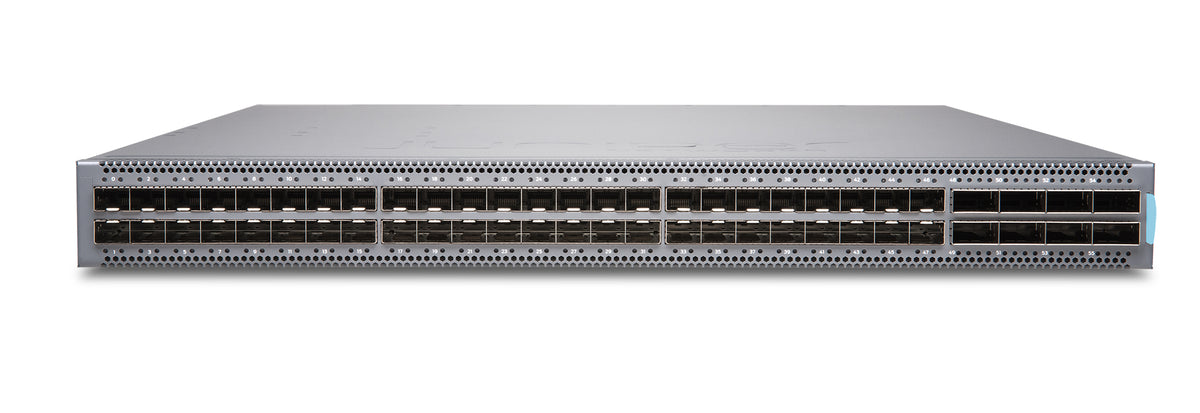

| QFX5120-48Y | 48 × 1/10/25GbE SFP/SFP+/SFP28 | 8 × 40/100GbE QSFP+/QSFP28 | 4 Tbps |
| QFX5120-48YM | 48 × 1/10/25GbE SFP/SFP+/SFP28, MACsec | 8 × 40/100GbE QSFP+/QSFP28 | 4 Tbps |

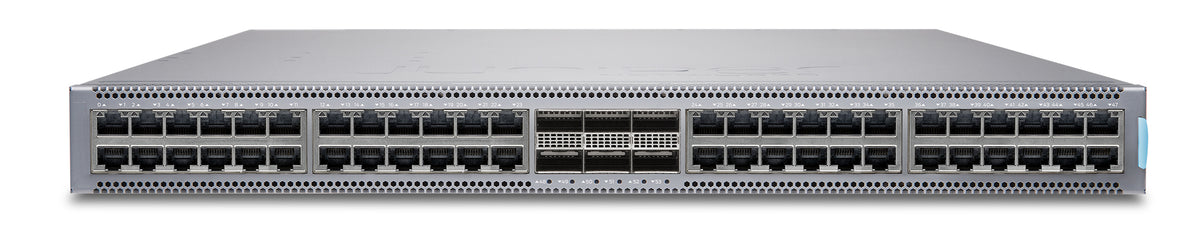

| QFX5120-48T | 48 × 1/10GbE RJ45 | 6 × 40/100GbE QSFP+/QSFP28 | 2.16 Tbps |

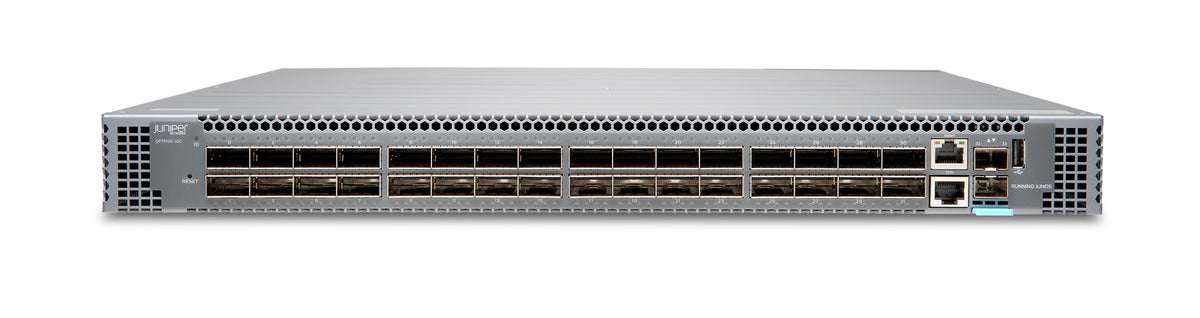

| QFX5120-32C | 32 × 40/100GbE QSFP+/QSFP28 | 2 × 10GbE SFP+ | 6.4 Tbps |
Switching capacity bidirectional. QFX5120-48T also available as an Open Rack v3 (ORv3) variant. Breakout cables allow additional 10/25GbE ports.
Source of information: hpe.com Datenblatt (PDF) ·juniper.net Datenblatt JA (PDF)
