Juniper Mist Wi-Fi 6E Access Points (AP45, AP34, AP24)

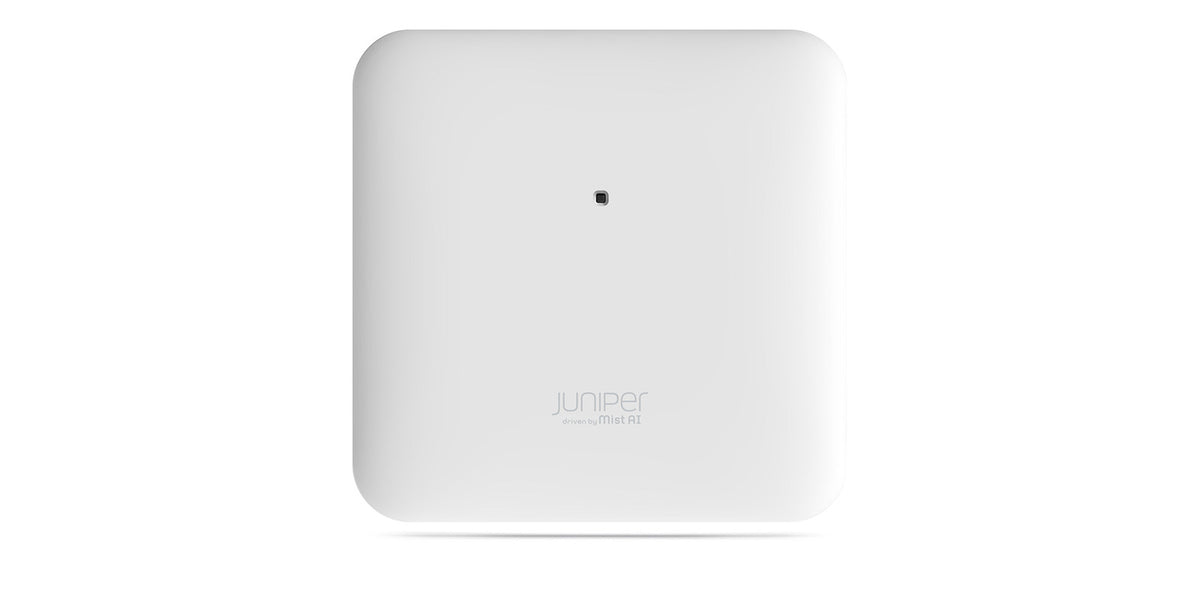

The Juniper AP45, AP34 and AP24 access points support Wi-Fi 6E (802.11ax) with the 6 GHz band. According to Juniper, the AP45 is designed for demanding high-density applications, the AP34 for areas requiring a 6 GHz tri-band access point without vBLE location services and the AP24 as an entry-level model.

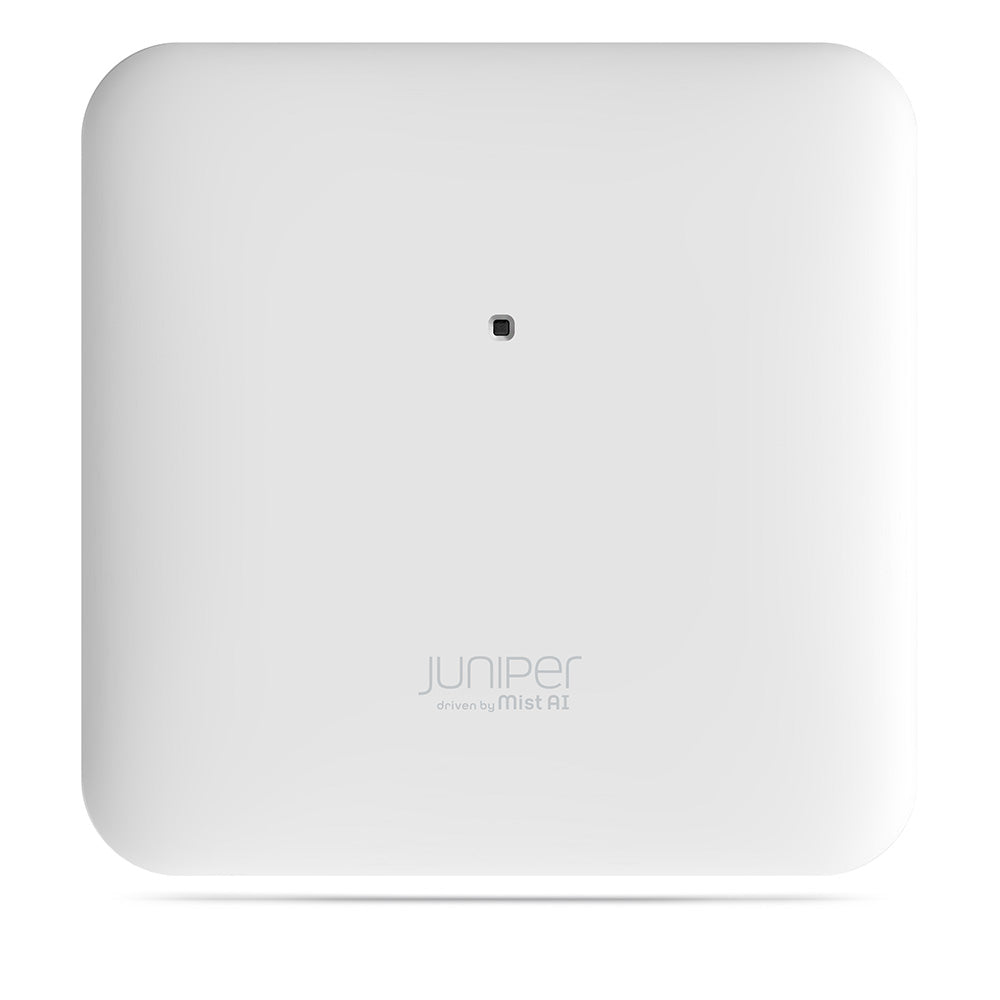

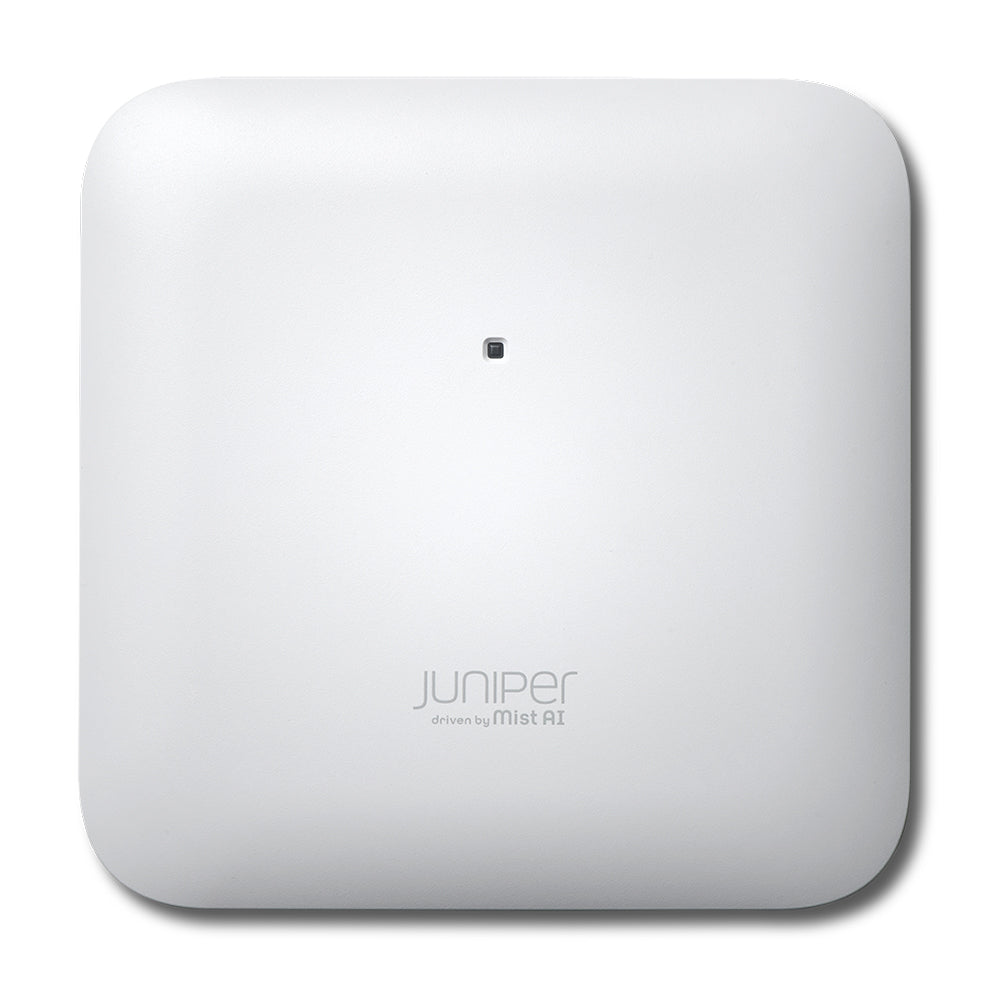

The AP45 uses four spatial streams in all three bands and includes vBLE for location services. The AP34 and AP24 use two spatial streams. The AP45 and AP34 have a dedicated fourth radio, the AP24 a third radio for analytics and security. According to the datasheet, the AP24 runs with full functionality on 802.3af PoE. According to Juniper, the access points connect automatically to the Juniper Mist cloud, download their configuration and are managed via the Mist cloud.
We are happy to advise you on project and volume enquiries. On request, DEVACON handles planning, configuration and commissioning.
Key facts from the Juniper datasheet
- Wi-Fi standard: Wi-Fi 6E (802.11ax) with 6 GHz, backwards compatible with 802.11a/b/g/n/ac
- AP45: 4x4:4 at 2.4, 5 and 6 GHz, max. 4,800 Mbps (6 GHz), 16-element vBLE array
- AP34 and AP24: 2x2:2, max. 2,400 Mbps (6 GHz), omnidirectional Bluetooth
- Dedicated radio for WIDS/WIPS, spectrum and location analytics
- PoE: AP45 full function with 802.3bt, AP34 with 802.3at, AP24 with 802.3af
- Mounting with universal bracket (included)
- Trusted Platform Module (TPM)
Areas of use
- High-density environments (AP45)
- Offices and enterprise areas requiring 6 GHz
- Entry into Wi-Fi 6E (AP24)
Models and key specifications
| Model | Streams | Max. data rate per band (2.4 / 5 / 6 GHz) | LAN ports | PoE for full function |
|---|---|---|---|---|
| AP45 | 4x4:4 | 1,148 / 2,400 / 4,800 Mbps | 1 × 5GbE RJ45 (PoE input), 1 × 1GbE | 802.3bt |
| AP45E | 4x4:4 | 1,148 / 2,400 / 4,800 Mbps | 1 × 5GbE RJ45 (PoE input), 1 × 1GbE | 802.3bt |
| AP34 | 2x2:2 | 575 / 1,200 / 2,400 Mbps | 1 × 5GbE RJ45 (PoE input) | 802.3at |
| AP24 | 2x2:2 | 575 / 1,200 / 2,400 Mbps | 1 × 2.5GbE RJ45 (PoE input) | 802.3af |
Data rates are maximum radio data rates per datasheet, not user throughput. AP45E with external antennas, operating temperature −10 to 50 °C, otherwise 0 to 40 °C. AP24: dual-band concurrent with 2.4 + 5 GHz or 5 + 6 GHz. Order numbers -WW (outside the US) and -US.
Source of information: juniper.net (Datenblatt AP45) ·juniper.net (Datenblatt AP34) ·juniper.net (Datenblatt AP24) ·Juniper EOL-Übersicht Access Points
