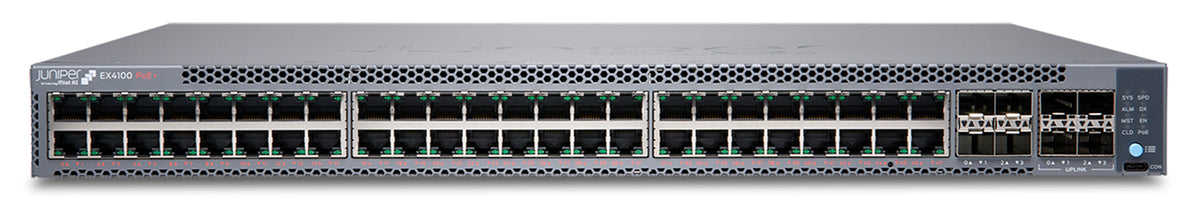

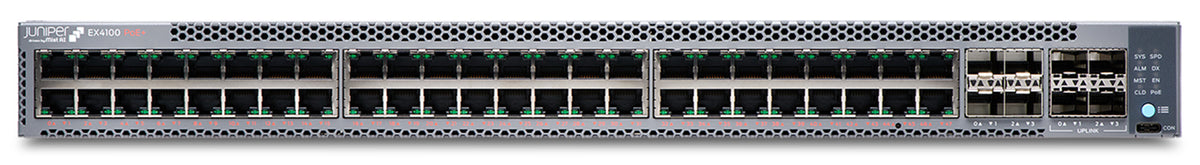

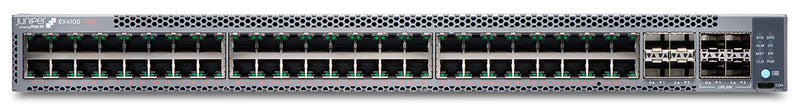

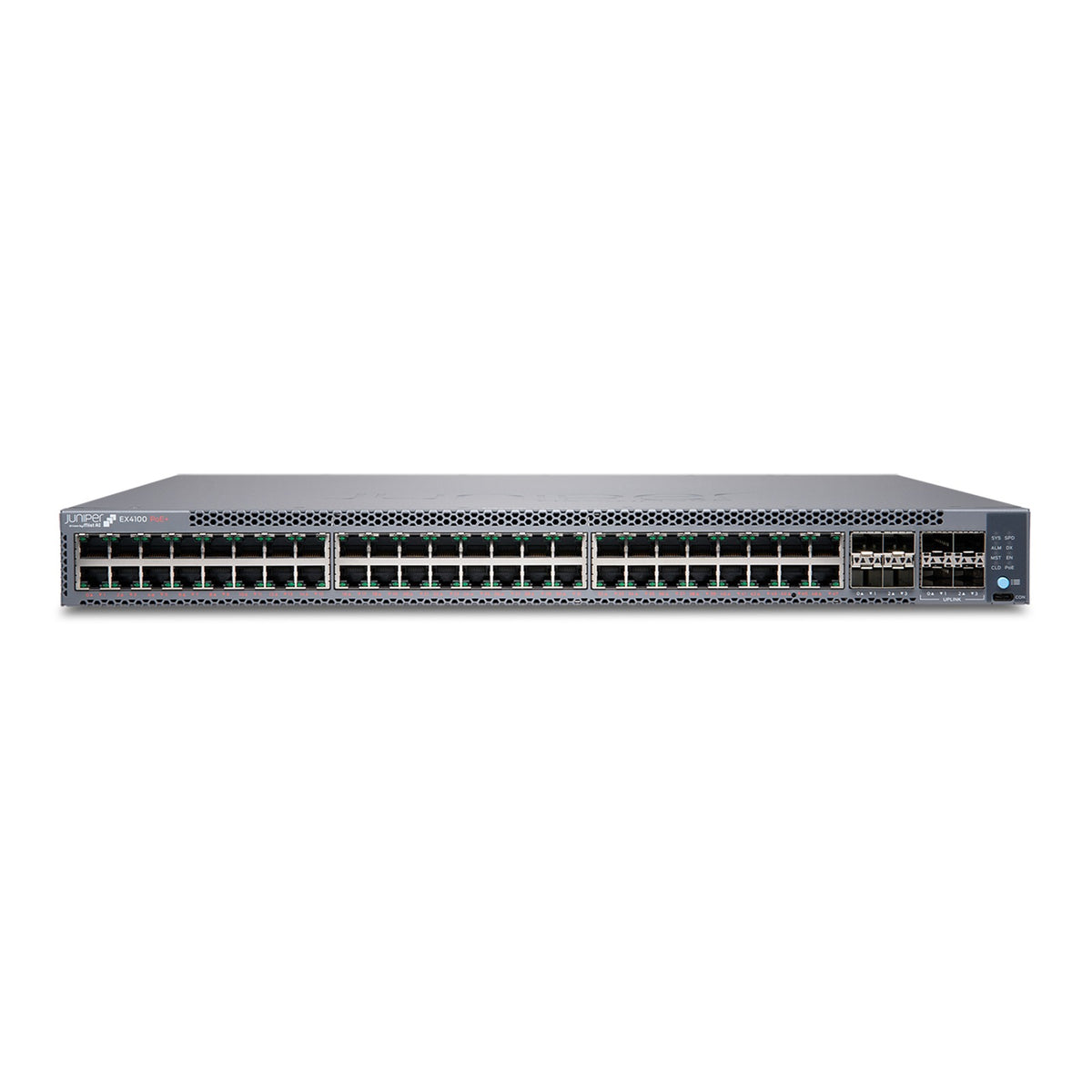

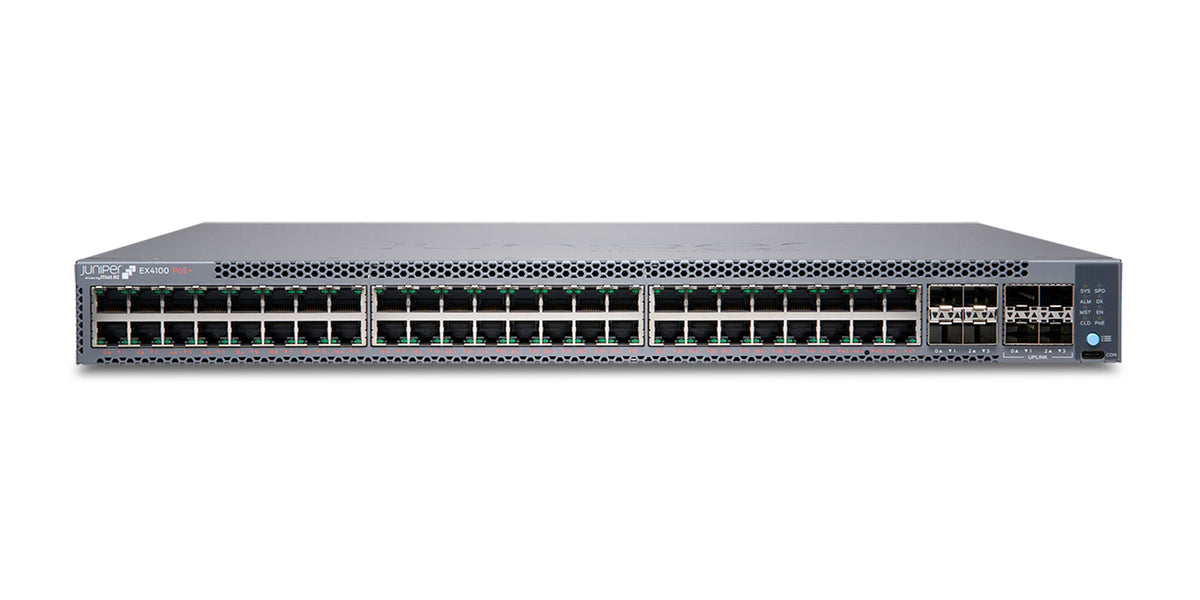

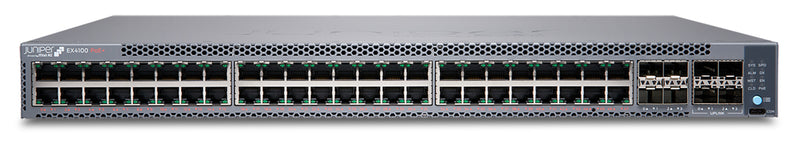

Juniper EX4100 Ethernet Switch
The Juniper EX4100 is a modern, cloud-ready enterprise switch for high-performance deployments in branch and campus networks. The model is suitable for businesses looking for a future-proof switching platform with high operational reliability and flexible scaling.
On request, DEVACON provides consulting on architecture, rollout and suitable Juniper integration.
Key facts from the Juniper datasheet
- Form factor: 1 U
- Virtual Chassis with up to 10 switches (EX4100: 200 Gbps)
- EX4100: redundant hot-swappable power supplies (150 W or 920 W AC, 150 W DC) and 2 field-replaceable fans
- EX4100-F: integrated power supply and fans
- PoE+ up to 30 W per port, multigigabit models PoE++ up to 90 W per port
- EVPN-VXLAN, MACsec AES256, PTP transparent clock
- Cloud management with Juniper Mist Wired Assurance and Marvis
Models and key specifications
| Model | Access ports | Uplinks | PoE budget | Switching capacity |
|---|---|---|---|---|
| EX4100-24T | 24 × 1 GbE RJ45 | 4 × 1/10 GbE SFP+ + 4 × 10/25 GbE SFP28 | no PoE | 328 Gbit/s |
| EX4100-24P | 24 × 1 GbE RJ45 PoE+ | 4 × 1/10 GbE SFP+ + 4 × 10/25 GbE SFP28 | 1440 W | 328 Gbit/s |
| EX4100-48T | 48 × 1 GbE RJ45 | 4 × 1/10 GbE SFP+ + 4 × 10/25 GbE SFP28 | no PoE | 376 Gbit/s |
| EX4100-48P | 48 × 1 GbE RJ45 PoE+ | 4 × 1/10 GbE SFP+ + 4 × 10/25 GbE SFP28 | 1440 W | 376 Gbit/s |
| EX4100-24MP | 8 × 10 GbE mGig + 16 × 1 GbE PoE++ | 4 × 1/10 GbE SFP+ + 4 × 10/25 GbE SFP28 | 1620 W | 472 Gbit/s |
| EX4100-48MP | 16 × 2.5 GbE + 32 × 1 GbE PoE++ | 4 × 1/10 GbE SFP+ + 4 × 10/25 GbE SFP28 | 1620 W | 424 Gbit/s |
| EX4100-F-12T | 12 × 1 GbE RJ45 | 2 × 10 GbE mGig + 4 × 10 GbE | no PoE | 144 Gbit/s |
| EX4100-F-12P | 12 × 1 GbE RJ45 PoE | 2 × 10 GbE mGig + 4 × 10 GbE | 144 Gbit/s | |
| EX4100-F-24T | 24 × 1 GbE RJ45 | 4 × 1/10 GbE + 4 × 10 GbE | no PoE | 208 Gbit/s |
| EX4100-F-24P | 24 × 1 GbE RJ45 PoE | 4 × 1/10 GbE + 4 × 10 GbE | 208 Gbit/s | |
| EX4100-F-48T | 48 × 1 GbE RJ45 | 4 × 1/10 GbE + 4 × 10 GbE | no PoE | 256 Gbit/s |
| EX4100-F-48P | 48 × 1 GbE RJ45 PoE | 4 × 1/10 GbE + 4 × 10 GbE | 256 Gbit/s |
EX4100: PoE budget with two power supplies (920 W AC), SFP28 ports serve as Virtual Chassis ports or uplinks. EX4100-F: values from the Juniper specs page, PoE budget not stated there (empty). Switching capacity bidirectional.
Source of information: juniper.net (PDF) ·juniper.net
